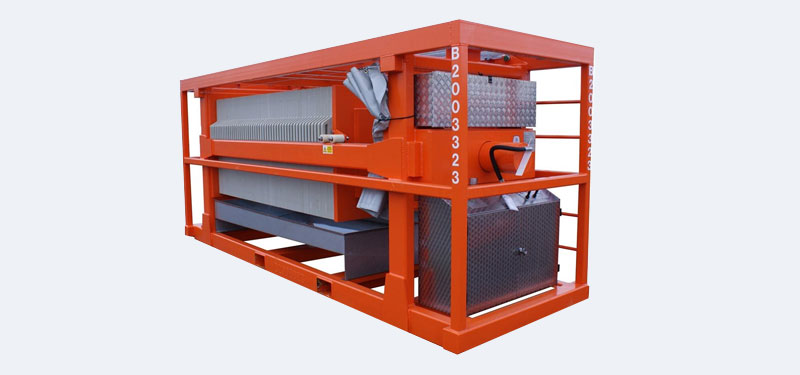

DE Filter Press

DE Filter Press

• 1200 ft.sq filtration capacity
• Polypropylene plates and cloths
• Electrical motor driven oil over hydraulic double acting rams
• Pneumatic Piston Actuation.
• 4"inlet/outlet FIG206 WECO hammer union
• 4"oil filled pressure gauge
• Design pressure 7 BAR c/w pressure relief value
• 1250mm*1250mm*70mm filter plate each,total 40 EA.
• Weight 9 Mtons
• Dimensions 7 mx 1.75m x 2.2m (L x W x H)
• Lifting frame and certified slings
• Flow rate 12 bpm
